DataRack

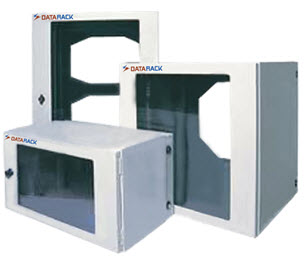

DataRack Wallmount Cabinet



-    Structure of products is vertical structure - Doors: DataRack with 4 doors, 02 removable side doors, 02 front door and posterior door are mounted safe lock, front door is made by make or perforated.
-    Description: Our products are produced and packaged by plate steels with 1mm-1.5mm thick.
-    Cracks are consolidated steadily with cross-bars, 04 standard bars (2 front bars and 2 behind bars) are mounted vertically follow the height of Cracks.
-    Ensure aesthetic and ventilation for inside Crack equipment
-    Accessories: 04 multi – directional wheels and fixed key (adjustable height) helping to remove and fix easily Cabinet
-    Standard: compatible with 19" EIA-310D standard equipment
-    Ability to adjust position of fitting connection
-    Installation: Supporting cable managing tray
-    DataRack Producer and Distributor: Products with brand name DataRack (Cabinet Rack) are ELV Technologies Corporation, tested and registered trademark in Vietnam. DataRack plays an important role in Data Center, IT room, Network room and Telecommunication room... Crack is not only equipment container but also the most effective and scientific equipment manager and protector. - Rack Cabinet and Accessories are produced in ELV Technologies Corporation with imported line of advanced technology.
-    Fan system ( Included )
-    Fixed tray ( Optional)
-    Slipped tray ( Optional)
-    Switches ( Optional) : 01 switch with 06 ports -1U PP, 01MCB 30A-3000W
-    Warranty: 12 month (producer standard)



Technical specifications

12U

9U

6U

Height/ Width/ Depth

548/ 600/ 440

440/ 600/ 440

320/ 600/ 440

Load capacity

25 kg

20 kg

150 kg

Static load capacity

40 kg

40 kg

40 kg

Cabinet  frame

Import steel with 2.0 mm thick

Import steel with 2.0 mm thick

Import steel with 2.0 mm thick

Cabinet cover

Steel plate, 1.0 – 1.5 mm thick, electrostatic coasting

Steel plate, 1.0 – 1.5 mm thick, electrostatic coasting

Steel plate, 1.0 – 1.5 mm thick, electrostatic coasting

Front door

5.0 mm thick mica

5.0 mm thick mica

5.0 mm thick mica

Lock

01 lock

01 lock

01 lock

Fan

01 fan

01 fan

01 fan

Bracket

Yes

Yes

Yes

Wheel

Yes

Yes

Yes

Color

Black & Grey

Black & Grey

Black & Grey


Order Information

DR-WR6

DataRack 19” Wallmount 6U (H320xW600xD440) – 1 door

DR-WR9

DataRack 19”Wallmount 9U (H440xW600xD440) – 1 door

DR-WR9-1

DataRack 19” Wallmount 9U (H440xW600xD440) – 2 door

DR-WR12

DataRack 19” Wallmount 12U (H584xW600xD440) – 1 door

DR-WR12-1

DataRack Wallmount 19” 12U (H584xW600xD440) – 2 door
