-    Structure of products is vertical structure - Doors: DataRack with 4 doors, 02 removable side doors, 02 front door and posterior door are mounted safe lock, front door is made by make or perforated.
-    Description: Our products are produced and packaged by plate steels with 1mm-1.5mm thick.
-    Cracks are consolidated steadily with cross-bars, 04 standard bars (2 front bars and 2 behind bars) are mounted vertically follow the height of Cracks.
-    Ensure aesthetic and ventilation for inside Crack equipment
-    Accessories: 04 multi – directional wheels and fixed key (adjustable height) helping to remove and fix easily Cabinet
-    Standard: compatible with 19" EIA-310D standard equipment
-    Ability to adjust position of fitting connection
-    Installation: Supporting cable managing tray
-    DataRack Producer and Distributor: Products with brand name DataRack (Cabinet Rack) are ELV Technologies Corporation, tested and registered trademark in Vietnam. DataRack plays an important role in Data Center, IT room, Network room and Telecommunication room... Crack is not only equipment container but also the most effective and scientific equipment manager and protector. - Rack Cabinet and Accessories are produced in ELV Technologies Corporation with imported line of advanced technology.
-    Fan system ( Included )
-    Fixed tray ( Optional)
-    Slipped tray ( Optional)
-    Switches ( Optional) : 01 switch with 06 ports -1U PP, 01MCB 30A-3000W
-    Warranty: 12 month (producer standard)



Technical specifications
Weight	105 kg
Load capacity	400 kg
Static load capacity	800 kg
Cabinet frame	Import steel with 2.0 mm thick
Cabinet cover	Steel plate, 1.0 – 1.5 mm thick, electrostatic coasting
Front door	75% grid for ventilation, 5.0 mm thick mica
Side door	Quickly release
Lock	04 locks
Fan	02 fans
Bracket	Yes
Wheel	Yes
Color	Black & Grey

Order Information

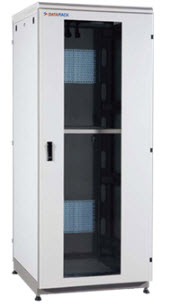

DR-32100	DataRack 19” Cabinet 32U – D1000 (H1600xW600xD1040) – Mica door
DR-3280	DataRack 19” Cabinet 32U – D800 (H1600xW600xD840)- Mica door
DR-3260	DataRack 19” Cabinet 32U – D600 (H1600xW600xD640) –Mica door
